TIMM ELEKTRONIK
We are leading developers and manufacturers of high quality safety and security technology “Made in Germany” for the areas of intelligent explosion protection and renewable energy. Since 1963, our products guarantee the highest level of safety and security for people, the environment and operating systems.
Around the world, TIMM’s electronic measuring and control equipment provides safety on tank farms, harbors and industry sites. Our devices are used mainly in the petrochemical industry, for example to safeguard loading and unloading of inflammable liquids or bulk solids, or to control access to restricted areas.
Our Intelligent Explosion Protection Concept (IEPC) enables you to put our devices into operation and also maintain them very easily, while still adhering to highest safety standards. This is one of the reasons why we are considered the technological leader in our area of business.

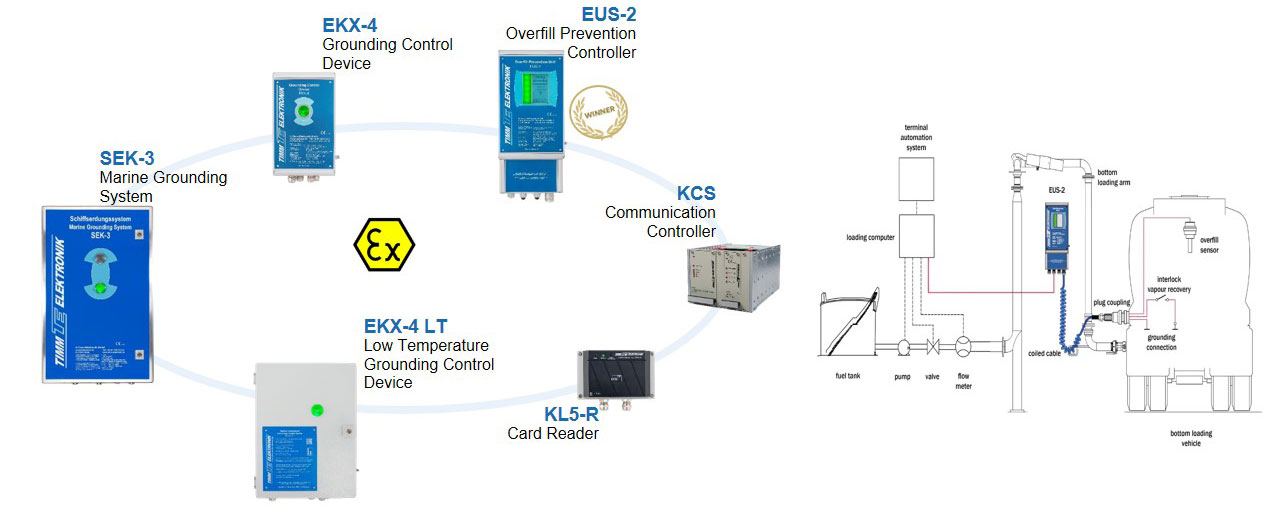

TIMM ELEKTRONIK, GERMANY: Grounding Control Devices, Overfill Prevention Control, Marine Grounding System, Coupler Interface and Data Terminal and Card Readers.
Grounding Control Device EKX-4
Safe Discharge of Electrostatic Charges
Functional Principle
EKX-4 ensures static electricity is discharged to the ground by a grounding cable and continuously monitors the grounding quality. Only if the connected object is detected and grounded properly, the electronic control outputs will switch and filling release will be signaled by green, widely visible LEDs. If there is an interruption of the grounding connection, this will be shown by red LEDs, the filling process will be interrupted immediately.
Product Benefits
- Prevents manipulation due to object recognition (by measuring the impedance)
- Automatic diagnosis system continuously self-monitors all safety related functions
- Simple device configuration (e.g. “road tank truck”, “railway tank wagon”)
- Possibility to connect longer cables (up to 30m) due to cable compensation
- Opening the housing under voltage is permissible- thanks to intelligent explosion protection (IEPC)

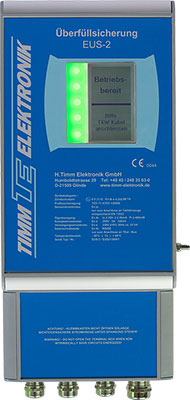

Overfill Prevention Controller EUS-2
Highest Safety for Bottom Loading Tank Trucks
Functional Principle
The Overfill Prevention Controller EUS-2 is the central part of the overfill prevention system according to European VOC Directive 94/63/EC and American API RP 1004, EUS-2 monitors the level sensors at the tanker compartments, the truck grounding and the vapor recovery connection. The filling process is interrupted immediately at the loading gantry. If a critical situation is detected. The controller is able to detect the type of truck installation and activates the required operating mode automatically. This interoperability allows to load trucks of different carriers.
Product Benefits
- Continuous self-test of all safety-related functions
- Plain text display for messages in native language of the operator
- Self-explaining configuration via joystick navigation
- Supports up to 8 two-wire and 12 five-wire sensors
- Widely visible LEDs
- Two self-monitored control outputs, configurable outputs, and a serial data interface
- 'Parking position' signal for the truck plug
Marine Grounding System SEK-3
Best Practive by Monitoring of Compensation Current
Functional Principle
SEK-3 establishes a monitored equipotential bonding of very low resistance between ship and pier which counteracts the physical effect of electrical potential difference. This explosion protection measure prevents uncontrolled sparking when handling conductive elements at the terminal. In addition, the SEK-3 signals unsafe situations (such as over-voltage or over-current caused by active sources) by flashing LEDs and switching off the corresponding control outputs.
Product Benefits
- Very low-ohmic measure line, specifically for maritime application.
- 2 clearly visible LEDs on the device front
- Easy check of a proper grounding connection due to additional status LEDs at the grounding clamp
- Easy-to-understand error diagnosis system inside the housing
- Opening the housing under voltage is permissible – thanks to the intelligent explosion protection (IEPC)
Read More
